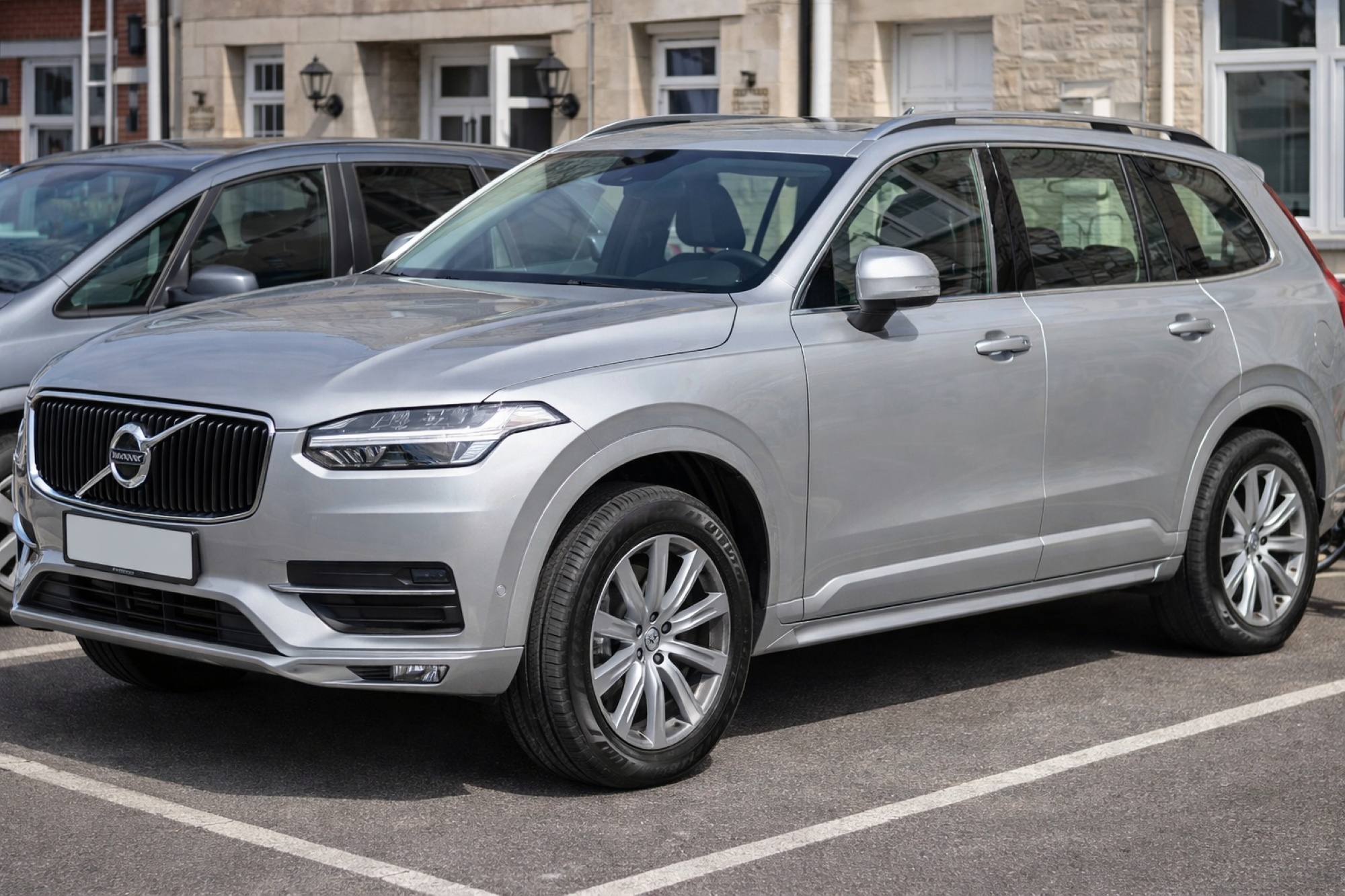

VOLVO XC90

COMMON PROBLEMS: Oil Separator/PCV Failure, Aisin 8-Speed Shudder, Air Suspension Compressor Wear, Expansion Tank Crack, Strut Mount Noise

The T6 engine in the XC90 runs both a turbocharger and a supercharger off the same 2.0L block, and the oil separator that manages crankcase pressure fails and pushes white smoke out the tailpipe. Owners mistake it for a head gasket problem, but it’s the PCV system venting oil vapor into the intake. Aisin eight-speed transmission fluid degrades faster under South Bay driving patterns than Volvo’s interval accounts for, and torque converter shudder follows once the fluid loses its friction properties. Air suspension compressors wear from running overtime to hold ride height, and coolant expansion tanks crack at the molded seam. Front strut mount bearings creak over parking lot speed bumps.

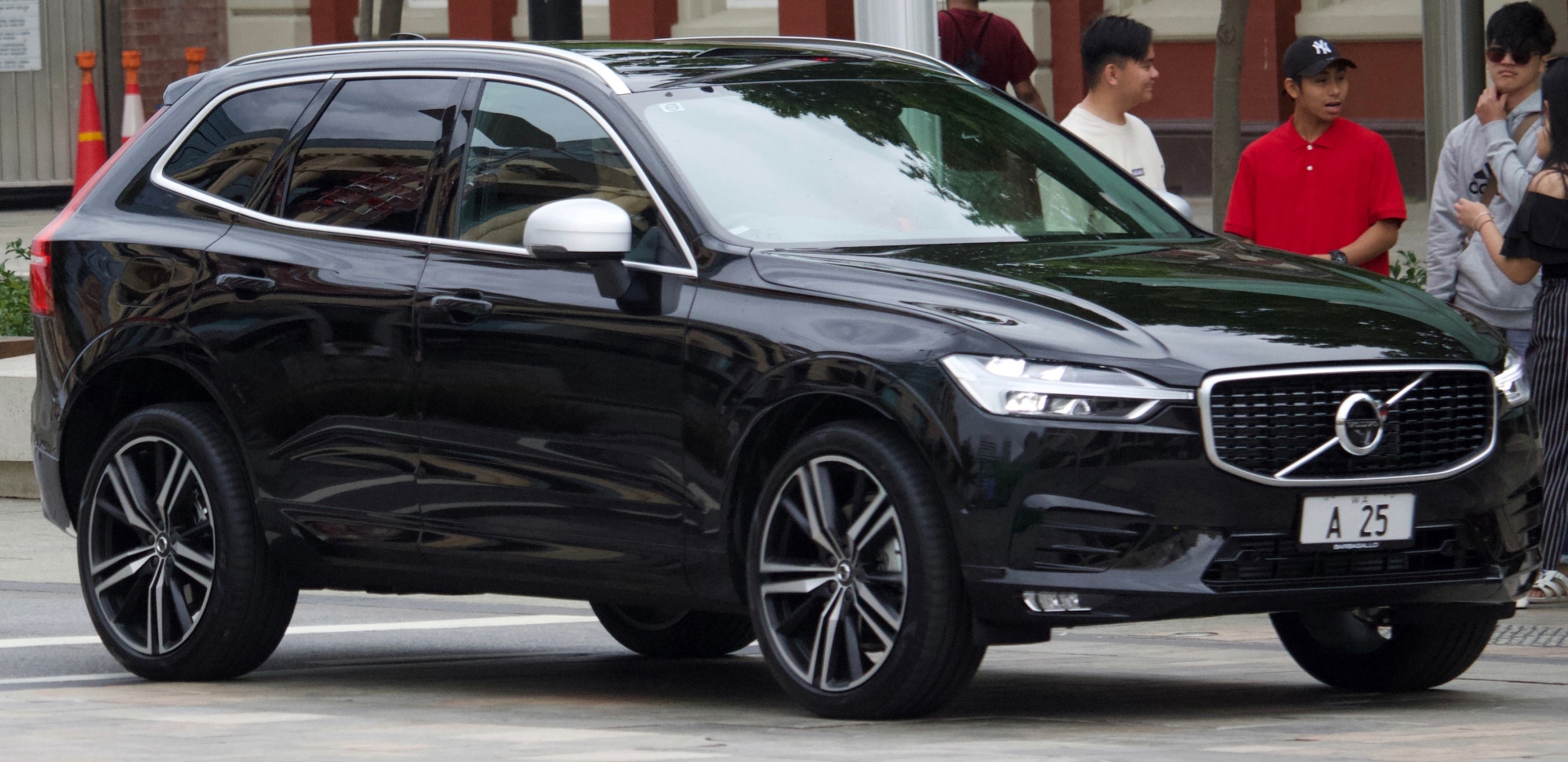

VOLVO XC60

COMMON PROBLEMS: PCV System Failure, Rear Differential Mount Wear, Sensus Screen Blackout, AC Compressor Clutch, Control Arm Bushing Wear

The XC60 T5 shares the PCV failure pattern with the XC90, and the symptoms overlap: oil consumption climbs, boost pressure drops, and idle quality deteriorates as crankcase pressure builds. Rear differential mount wear on AWD models announces itself with a clunk from the back of the car during hard acceleration from a stop. The Sensus infotainment screen dims or goes black from module failure, and a reboot sometimes buys you a few weeks before it dies for good. AC compressor clutch failure kills cooling output. Front lower control arm bushings soften and let the alignment wander, and you’ll notice vague steering on center before you notice tire wear.

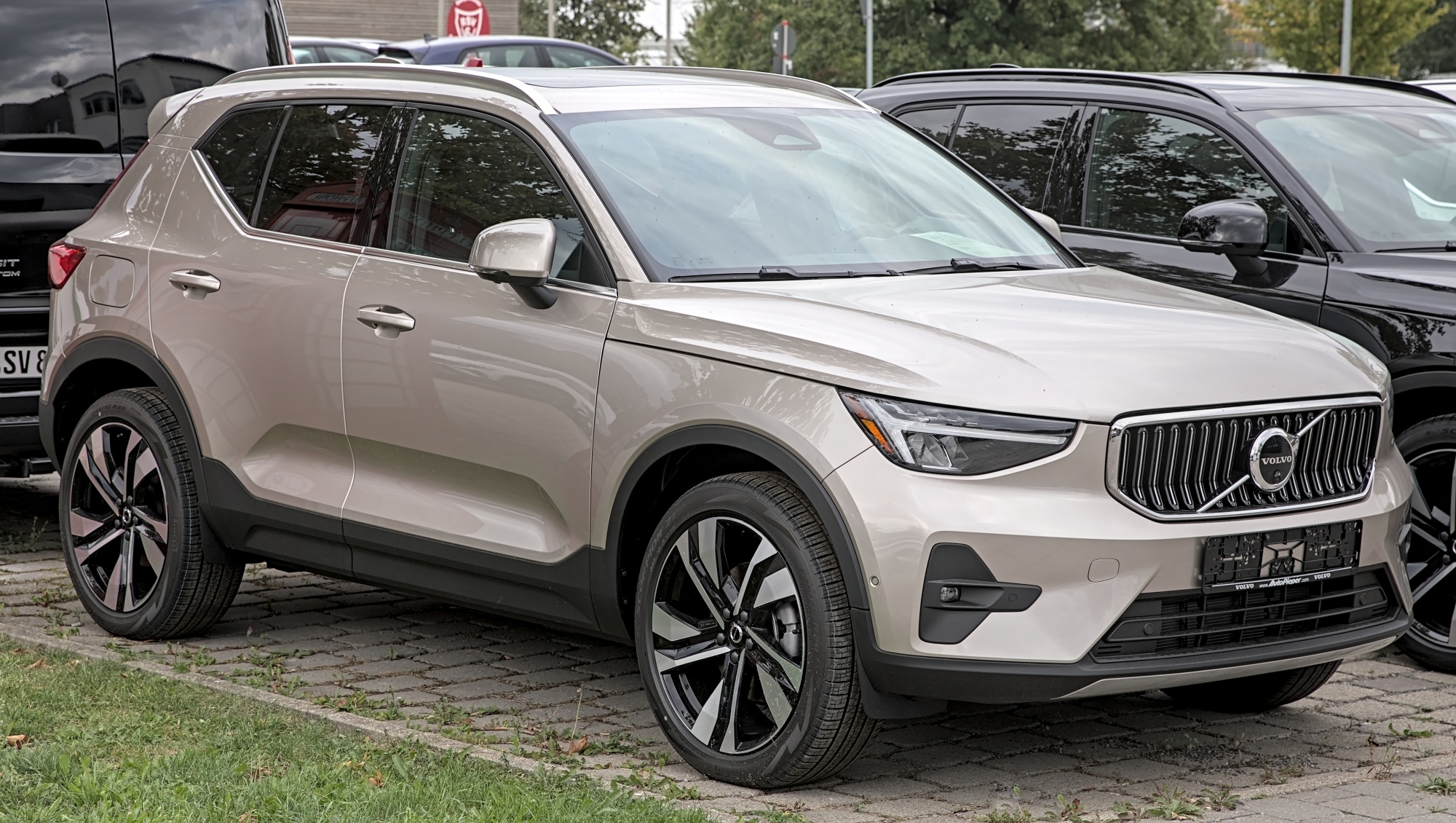

VOLVO XC40

COMMON PROBLEMS: Coolant Hose Clamp Failure, Torque Converter Shudder, Rear Shock Wear, Key Fob Drain, Charge Pipe Boost Leak

The XC40 is Volvo’s entry point, and it runs a 2.0T four-cylinder with a coolant hose clamp at the firewall that can fail and leak coolant down the back of the engine where you can’t see it from above. The Aisin eight-speed develops the same torque converter shudder as the XC90 under light throttle at highway speed. Rear shock absorbers wear early on cars that carry cargo weight in the hatch, and the ride turns bouncy over highway seams. Key fob batteries drain faster than expected on these models. The charge air pipe between turbo and intake can lose its coupling seal, and a hissing noise under acceleration paired with reduced power means boost pressure is escaping before it reaches the throttle body.

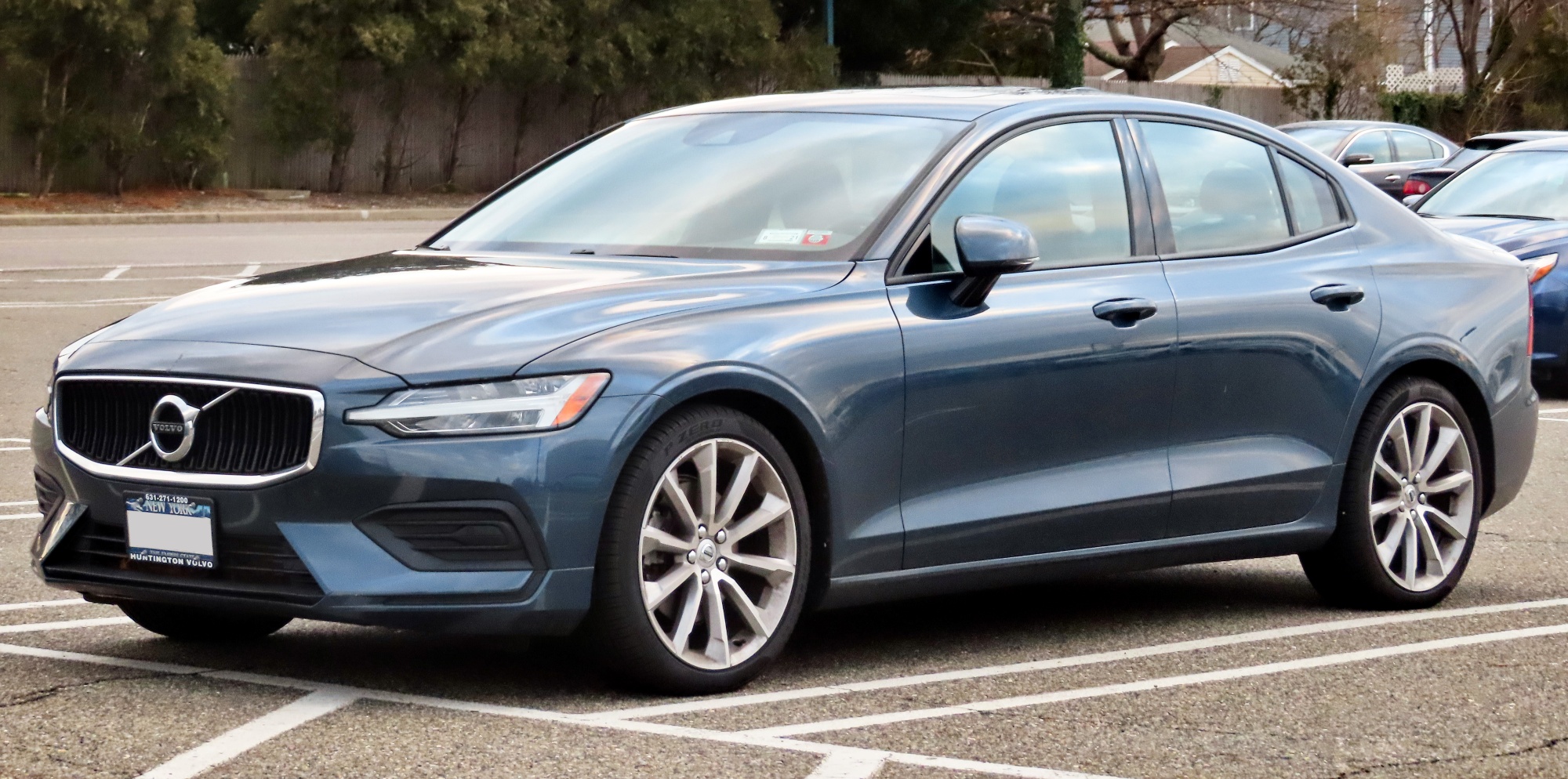

VOLVO S60

COMMON PROBLEMS: PCV Diaphragm Failure, Thrust Arm Bushing Wear, Transmission Mount Crack, LED Module Failure, AC Relay Fault

PCV diaphragm failure on the T5 S60 is one of the most common SPA platform service items we handle, and it causes boost leak, rough idle, and rising oil consumption all from one failed rubber diaphragm inside the oil trap assembly. Front thrust arm bushings wear and shift the front wheel alignment enough to scrub the inner edge of the front tires. Transmission mount cracking from engine torque reaction lets driveline vibration into the cabin during acceleration. Headlight LED driver module failure shows up as flickering or full dropout on one side. AC compressor clutch relay failure causes intermittent cooling that works some days and doesn’t work others, with no pattern you can predict.

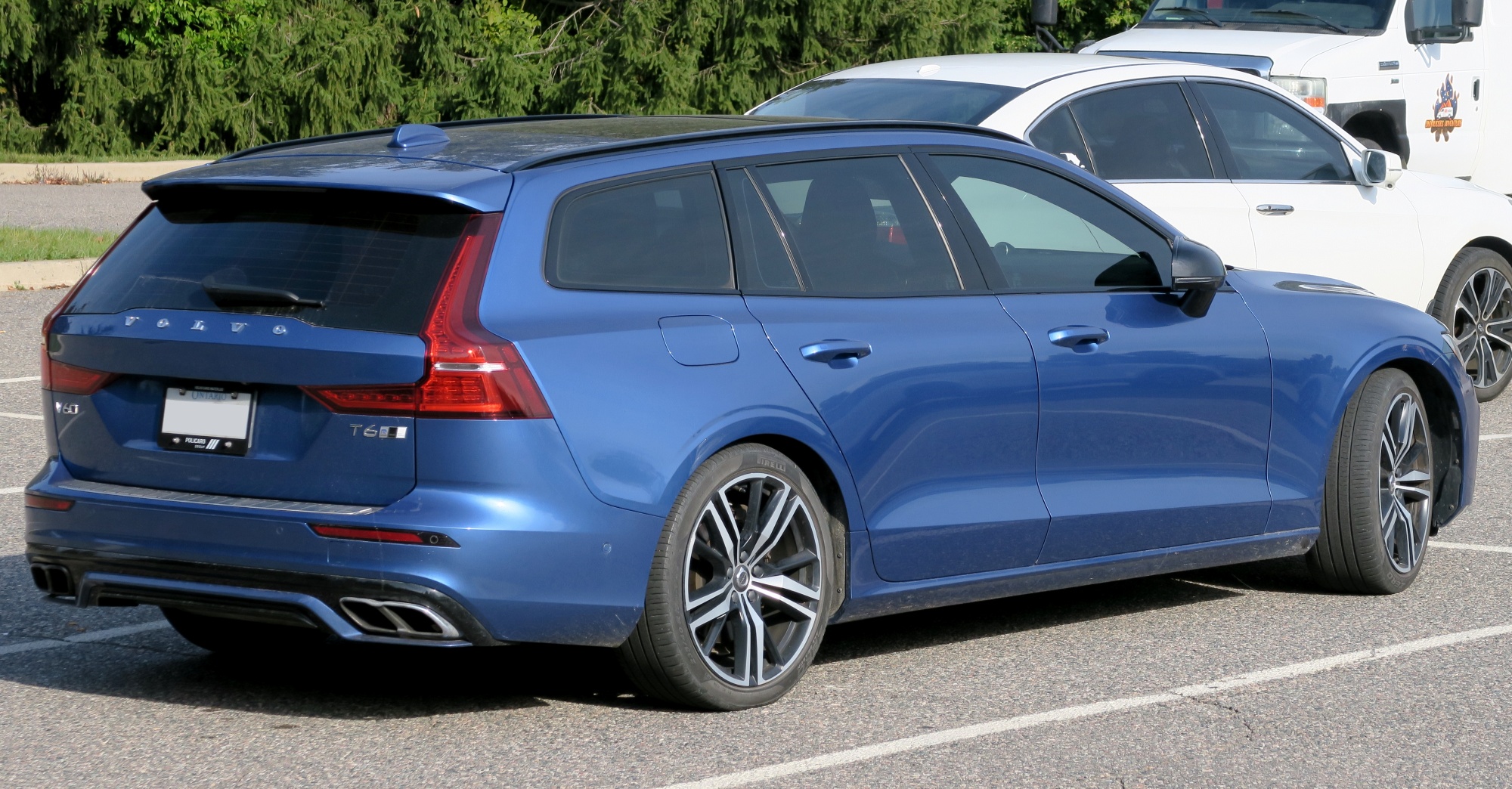

VOLVO V60

COMMON PROBLEMS: Wastegate Rattle, Rear Bushing Fatigue, Battery Management Fault, Caliper Pin Corrosion, Fuel Pump Relay Failure

The V60 wagon is the practical Volvo for families who need cargo space without stepping up to an SUV, and the T5 turbo wastegate rattles on cold start before exhaust heat stabilizes the valve seat. Rear multi-link bushings fatigue faster on the V60 than the S60 because wagon owners load the cargo area with weight that flexes the rear suspension geometry during cornering. Battery management module faults trigger a charging system warning on the cluster that stays on even after the battery tests good. Brake caliper slide pin corrosion causes uneven pad wear where the inner pad does all the work and the outer pad barely touches the rotor. Fuel pump relay intermittent failure stalls the engine during deceleration, and the car restarts fine after you coast to a stop and cycle the key.
