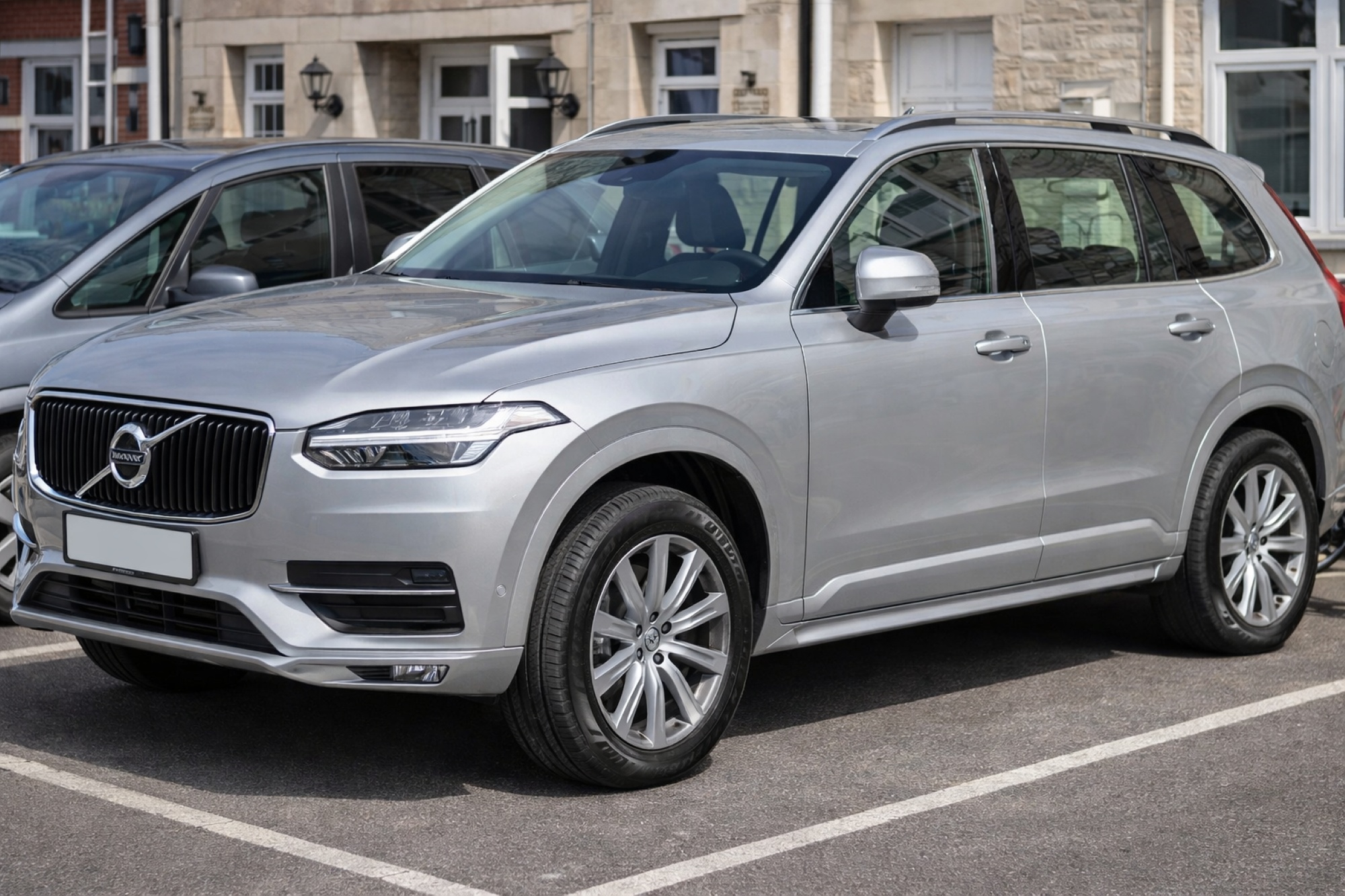

VOLVO XC90

COMMON PROBLEMS: Charge Air Cooler Crack, Aisin Converter Shudder, T8 Coolant Heater Fault, Control Arm Bushing, SRS Module Fault

The T6 XC90 pushes intake air through a charge air cooler mounted at the front of the engine, and the cooler develops cracks that vent boost pressure before it reaches the intake manifold. You’ll hear a hiss under load and feel the power drop before any warning light appears. Aisin eight-speed torque converter shudder at sustained highway speed comes from converter clutch material wearing against the friction surface inside the torque converter housing. T8 plug-in hybrid variants trip a check engine light from the engine coolant heater circuit, and the fault lives in the electrical supply to the heater element. Front lower control arm bushings wear and clunk over Fremont’s aging pavement. SRS restraint module communication faults light up the airbag warning on the cluster.

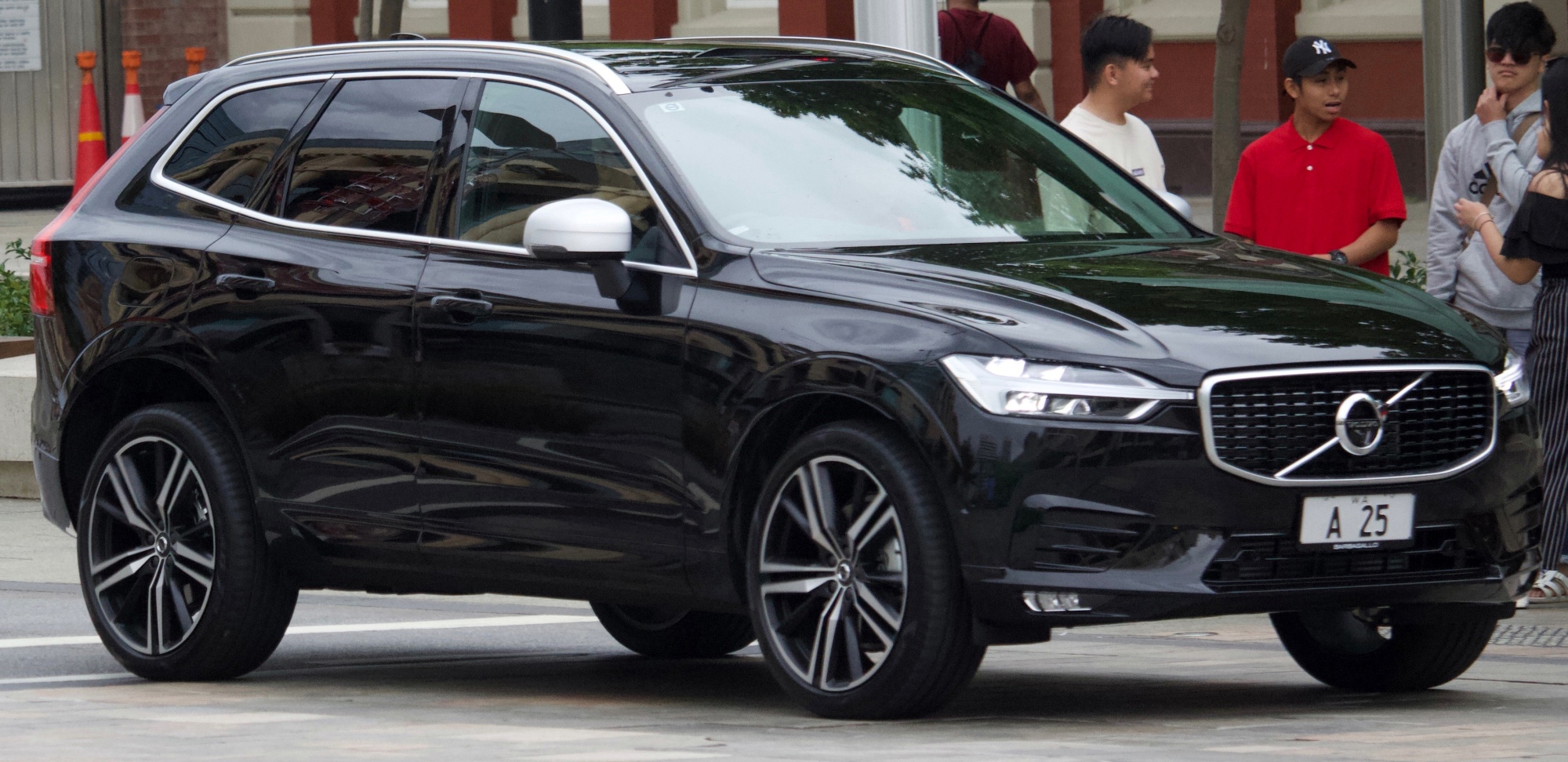

VOLVO XC60

COMMON PROBLEMS: Turbo Oil Return Restriction, Shock Top Mount Fatigue, Expansion Tank Crack, Sensus Reboot, Injector Seal Leak

The T5 XC60 turbo oil return line restricts over time, and oil pools inside the turbo housing after the engine shuts off. You’ll see blue or white smoke at startup the next morning, and the smoke disappears once the pooled oil burns through. Rear shock absorber top mounts fatigue from East Bay road impacts and transfer noise into the cabin over bumps. Coolant expansion tank neck cracks create a slow leak that’s almost impossible to see from the engine bay because the coolant evaporates off the hot engine surface before it reaches the ground. Sensus infotainment reboots mid-drive from module failure, and a soft reset buys time before the module dies for good. Fuel injector rail seal leak introduces raw fuel smell and disrupts idle quality.

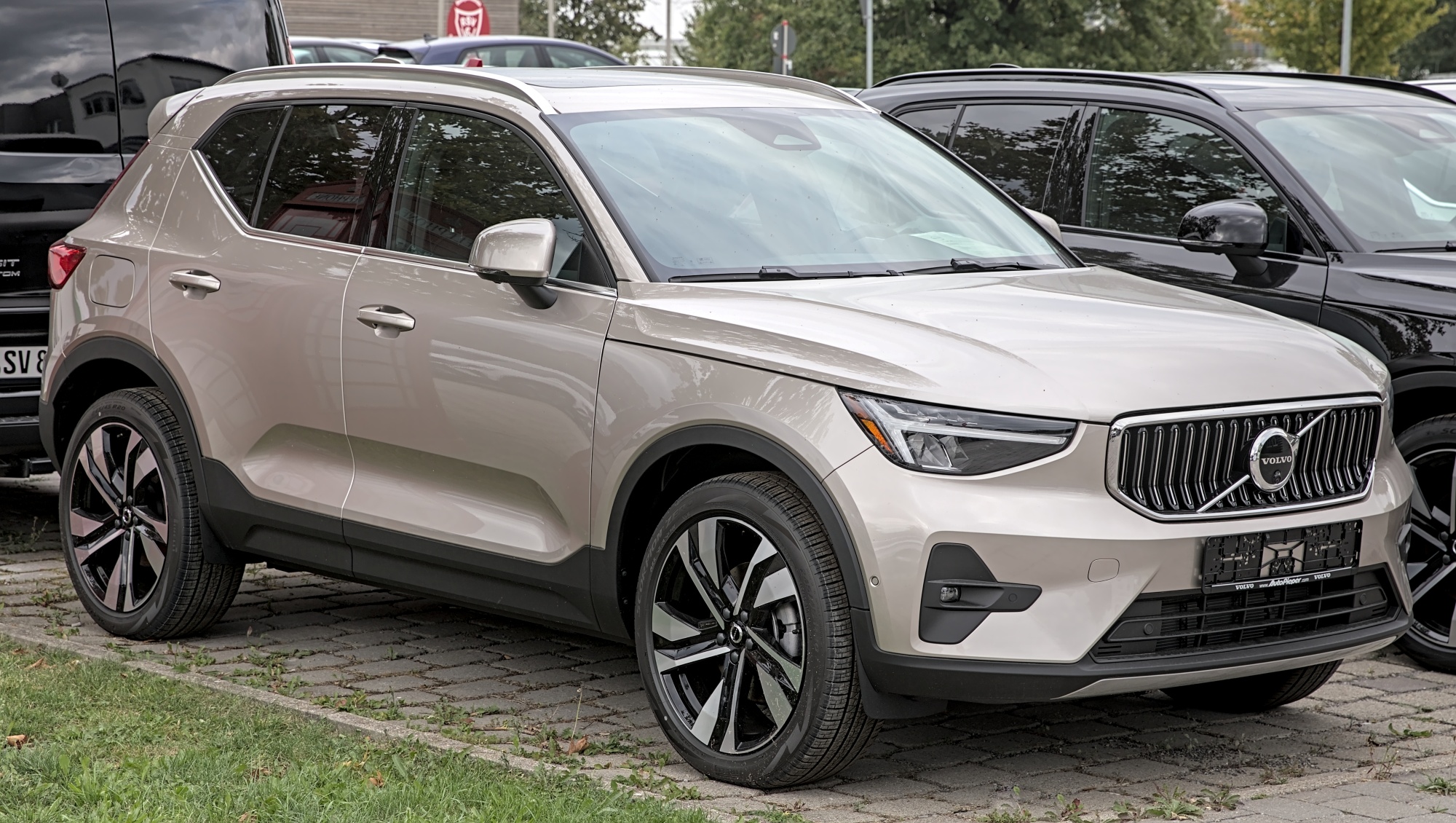

VOLVO XC40

COMMON PROBLEMS: EV 12V Battery Drain, Charge Pipe Coupling Failure, Wheel Bearing Noise, Tailgate Strut Loss, Key Fob Interference

The Recharge EV variant of the XC40 drains its 12V battery from module wake cycles during sleep mode, and you’ll find a dead battery after the car sits for a few days without driving. Turbo models lose boost when the charge air pipe coupling fails between the turbo outlet and intake manifold, and the loss shows up as reduced power with a fault code for low boost pressure stored in the ECU. Front wheel bearing noise from road surface impacts hums at a frequency that changes with vehicle speed. Rear tailgate struts lose gas charge and let the hatch drift closed under its own weight. Key fob signal interference from a cell phone stored in the same pocket causes intermittent lock and unlock failures that make you question the fob battery when the battery is fine.

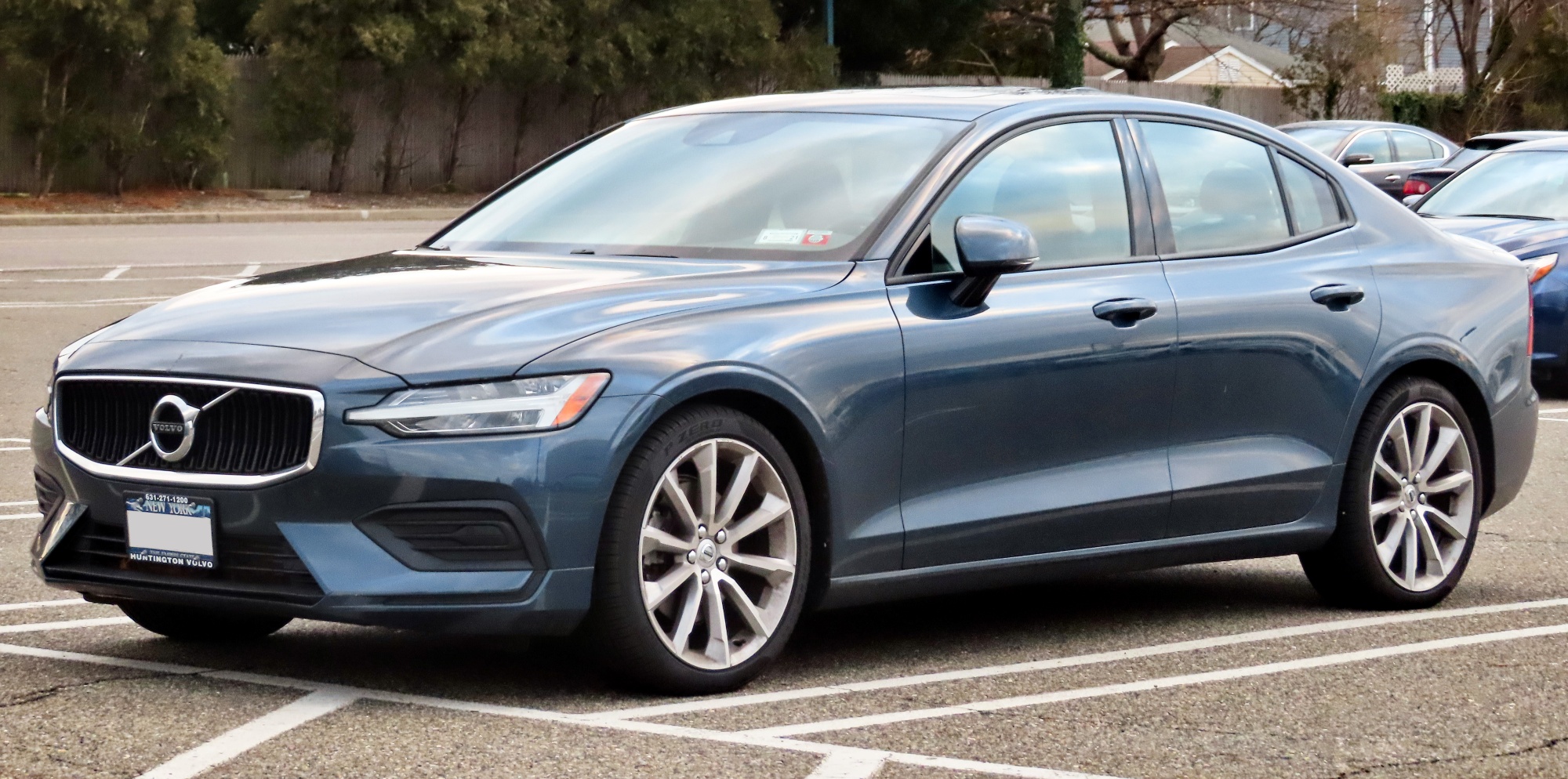

VOLVO S60

COMMON PROBLEMS: PCV Diaphragm Failure, Subframe Bushing Wear, LED Module Failure, Transmission Mount Crack, AC Relay Fault

PCV diaphragm failure inside the oil trap assembly is one of the most common SPA platform repairs we perform in our Fremont shop, and the single failed rubber diaphragm causes boost leak, rough idle, and oil consumption all at once. Front subframe bushings wear and introduce a vagueness in the steering that sits right at center, making highway lane-holding feel less precise than it did when the car was new. Headlight LED driver module failure drops one headlight to half output or full blackout without affecting the other side. Transmission mount cracking from engine torque reaction vibrates through the driveline during acceleration. AC compressor clutch relay faults cause cooling that works on Monday and doesn’t on Wednesday, with no logic to the pattern.

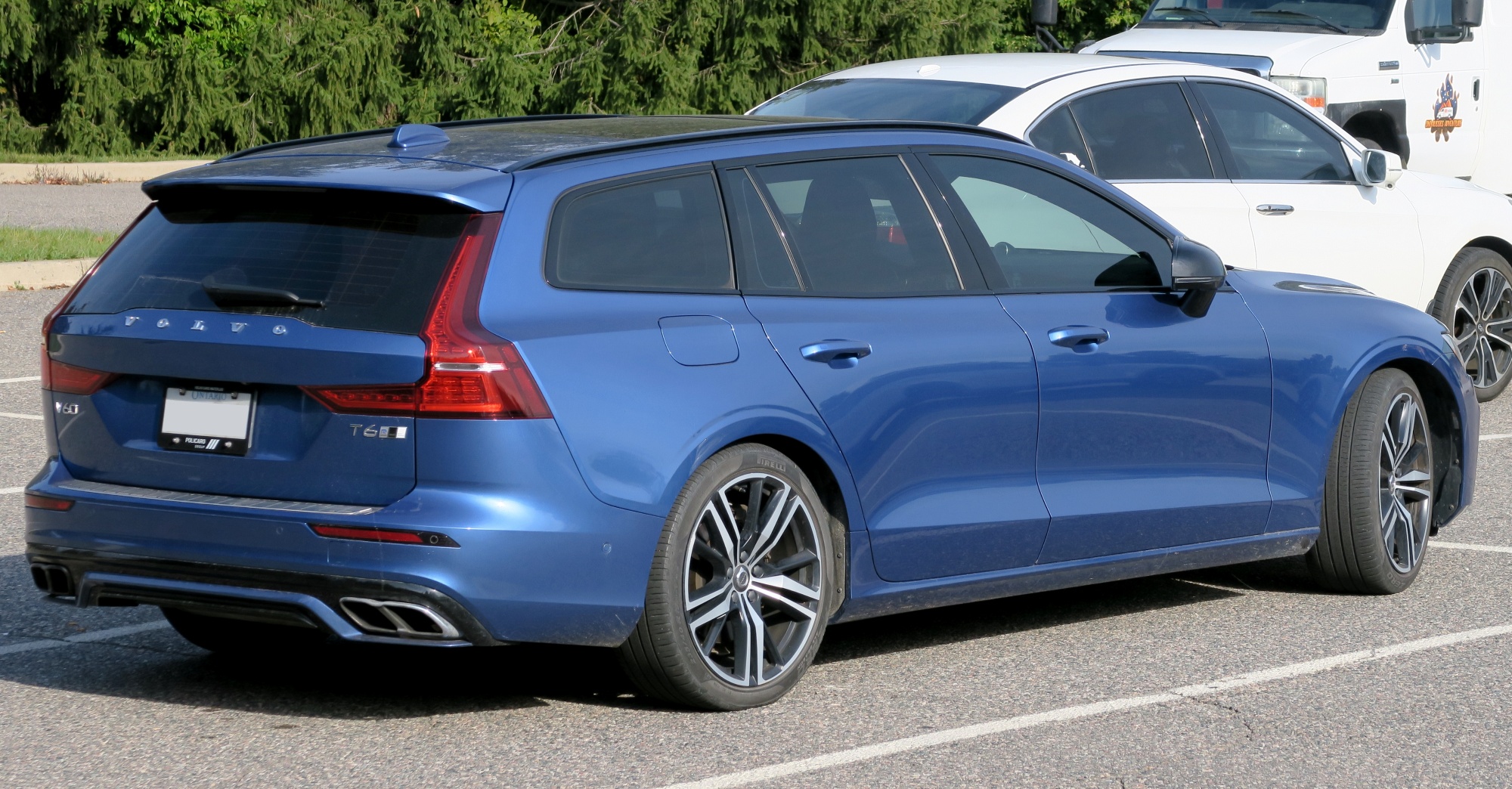

VOLVO V60

COMMON PROBLEMS: Oil Cooler Gasket Seep, Rear Bushing Fatigue, Battery Module Fault, Caliper Pin Corrosion, Fuel Pump Relay Stall

The V60 T6 oil cooler gasket seeps gradually and puts a thin film of oil on the subframe that collects road dust and turns into a visible streak over months. Rear multi-link bushings on the V60 wagon fatigue faster than the S60 sedan because cargo weight in the back flexes the rear geometry during cornering and creates stress that a sedan chassis doesn’t experience. Battery management module faults trigger a charging warning that persists even after the battery passes a load test with healthy numbers. Brake caliper slide pin corrosion locks one pad against the rotor while the other pad rides free, and uneven wear shows up at the next brake inspection. Fuel pump relay failure stalls the engine during deceleration, and the car restarts after coasting to a stop and cycling the ignition off and back on.
