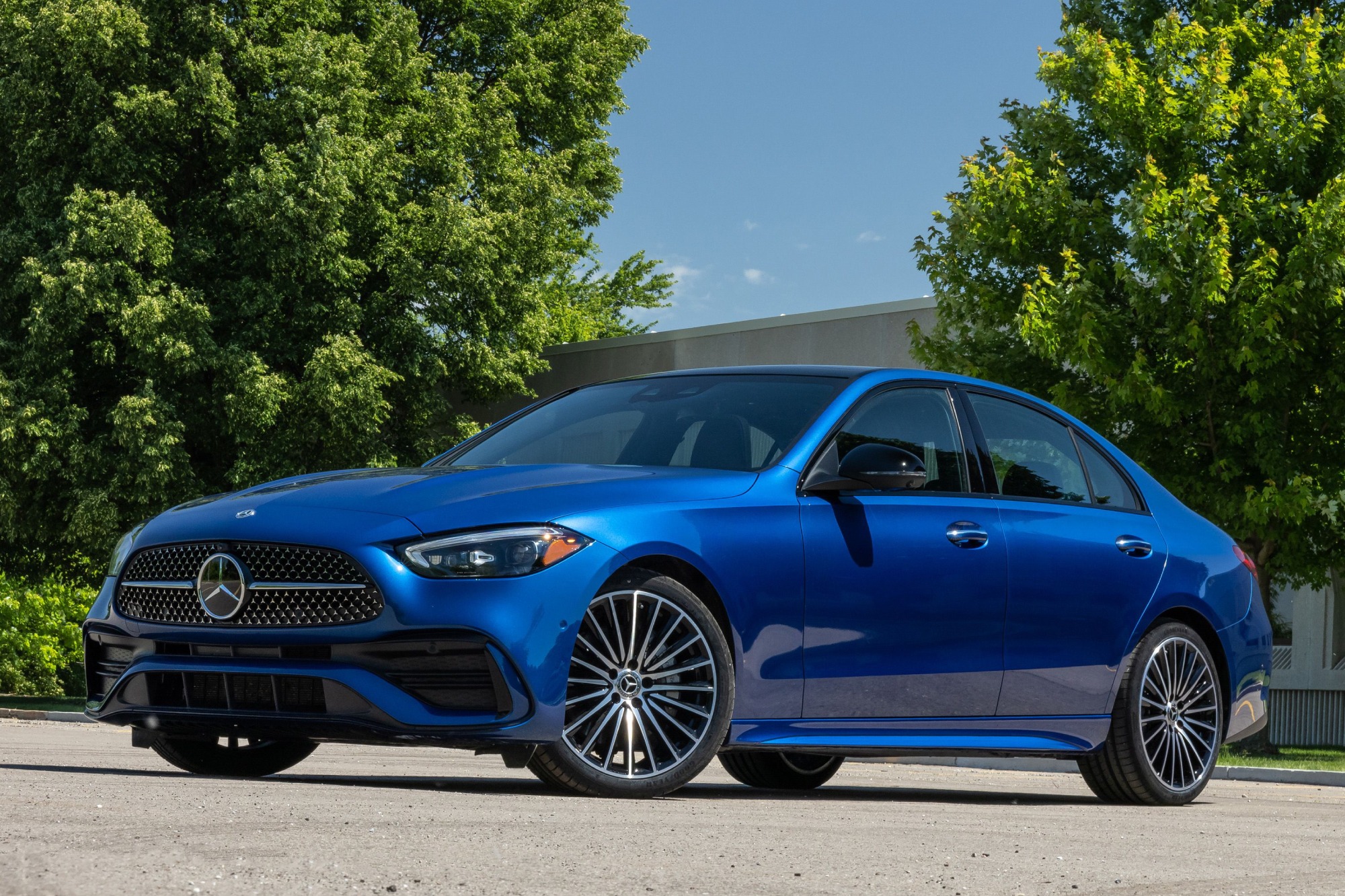

MERCEDES-BENZ C-CLASS

COMMON PROBLEMS: 48V Auxiliary Battery Failure, Wastegate Rattle, SAM Water Intrusion, Thrust Arm Bushing Wear, Brake Sensor Corrosion

The 48V auxiliary battery in the C-Class controls the start-stop system, and failure floods the instrument cluster with warning messages every time you turn the key. The M274 turbo wastegate rattles on cold mornings before exhaust temperature stabilizes the valve, and the noise worries owners who think the turbo itself is failing. Rear SAM (Signal Acquisition Module) water intrusion from trunk seal failure corrupts tail light and trunk circuits with electrical faults that come and go with rain. Front thrust arm bushings soften and let alignment drift. Brake pad wear sensor connector pins corrode and trigger a premature service warning when the pads still have plenty of friction material.

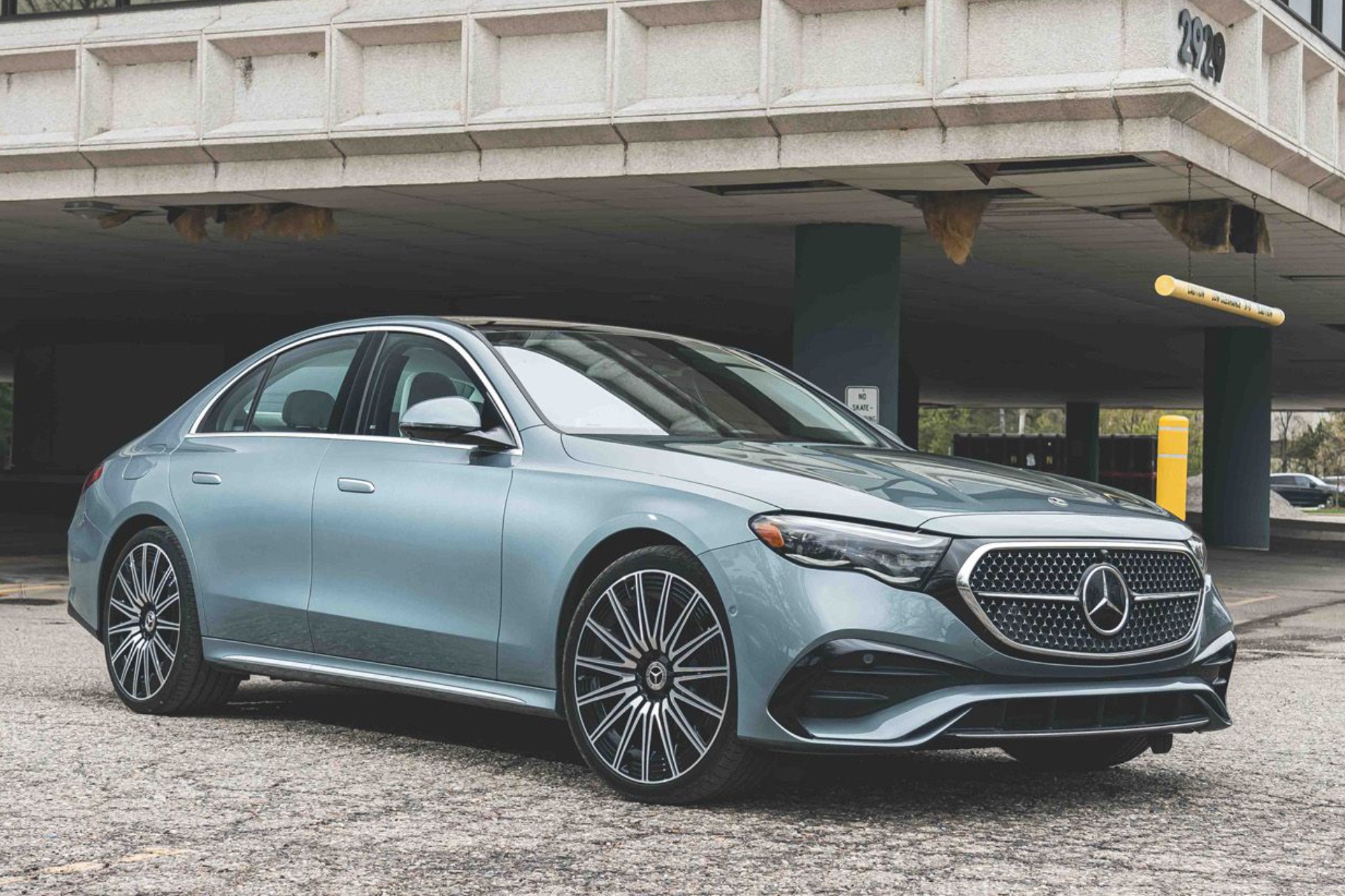

MERCEDES-BENZ E-CLASS

COMMON PROBLEMS: Conductor Plate Failure, ISG Software Fault, Compressor Thermal Shutdown, ELV Steering Lock, Rear Strut Leak

The 9G-Tronic conductor plate sits inside the transmission valve body, and its failure puts the gearbox into limp mode with a stored fault code that needs Mercedes-level diagnostic access to read and clear. The 48V ISG (integrated starter-generator) develops software calibration drift that requires a reflash to restore proper start-stop and boost-assist function. Airmatic compressor thermal shutdown happens during hot Fremont afternoons when the pump overworks to hold ride height against a slow spring leak. Steering column electronic lock failure prevents key recognition and leaves you standing in the driveway. Rear air strut leak drops one corner of the car overnight, and you’ll see the lean before you feel it in the steering.

MERCEDES-BENZ GLC

COMMON PROBLEMS: Thermostat Housing Crack, Transfer Case Starvation, Sunroof Wind Noise, Control Arm Wear, MAF Contamination

The GLC thermostat housing cracks along its plastic seam from thermal cycling, and coolant drips down the front of the engine before the temperature gauge moves. Transfer case fluid on 4MATIC models doesn’t last the “lifetime” that Mercedes suggests, and coupling wear follows once the fluid loses its protective properties under East Bay driving conditions. Panoramic sunroof wind noise creeps in as the seal shrinks from heat exposure over seasons. Front lower control arm ball joints wear and clunk over parking lot speed bumps. Mass airflow sensor contamination from oiled aftermarket air filter elements causes rough idle and a lazy throttle response that clears up temporarily after the sensor dries out.

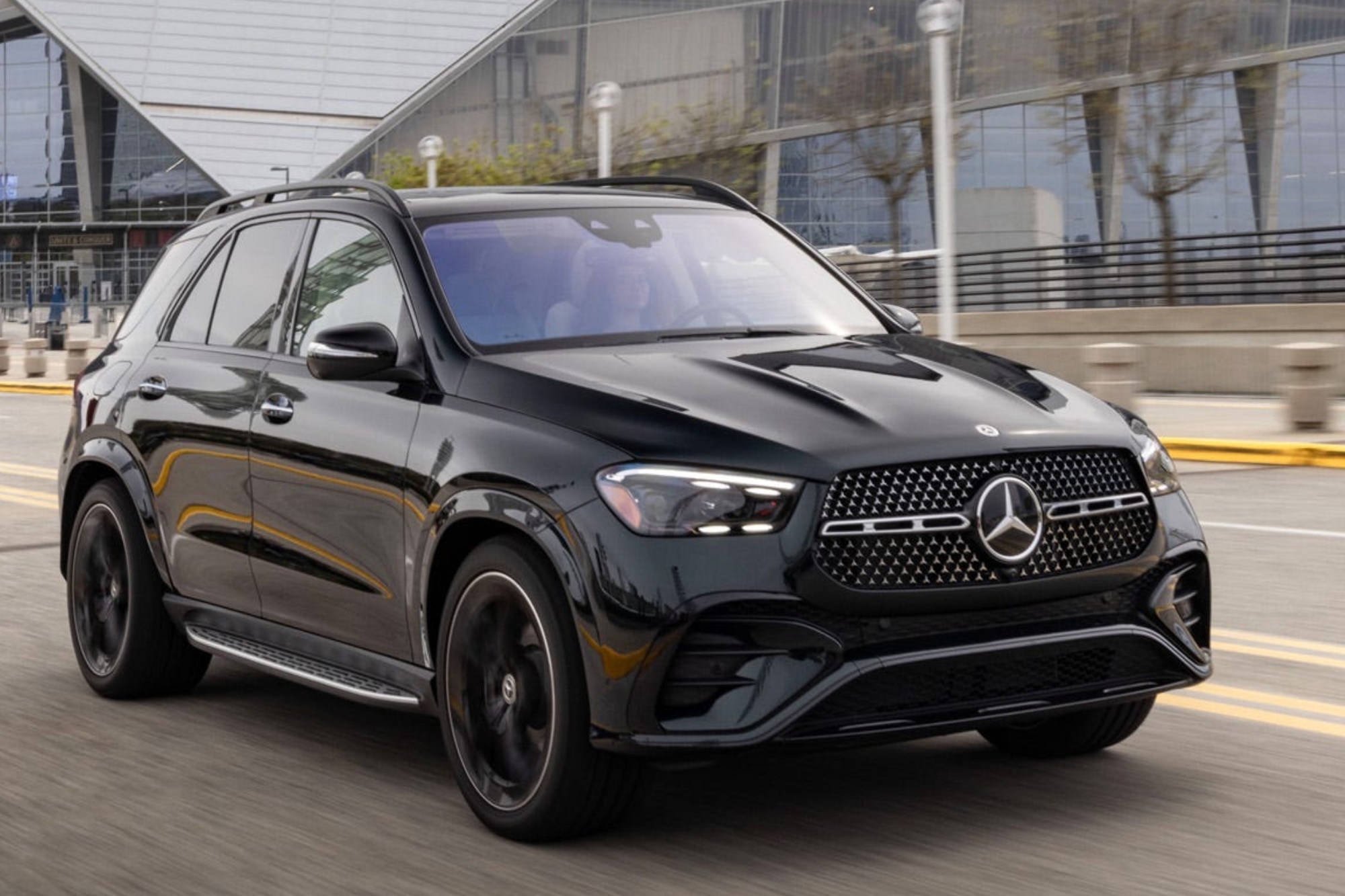

MERCEDES-BENZ GLE

COMMON PROBLEMS: Compressor Relay Failure, Air Spring Crimp Failure, Valve Block Leak, Differential Mount Crack, 48V Voltage Droop

Airmatic compressor relay failure shuts down the air suspension pump entirely, and the GLE settles onto its bump stops overnight without any warning on the cluster. Rear air spring failure at the crimp joint where rubber meets the metal fitting causes a slow leak that the compressor masks until it overheats from running nonstop. The valve block develops internal leak paths that direct air pressure to the wrong corner, and one side rises while the other drops. Rear differential mount cracking under towing or trailer loads produces a clunk during acceleration that repeats every time the driveshaft loads and unloads. The 48V system voltage droops during high electrical demand and triggers a warning cluster that looks alarming but clears once the system recovers.

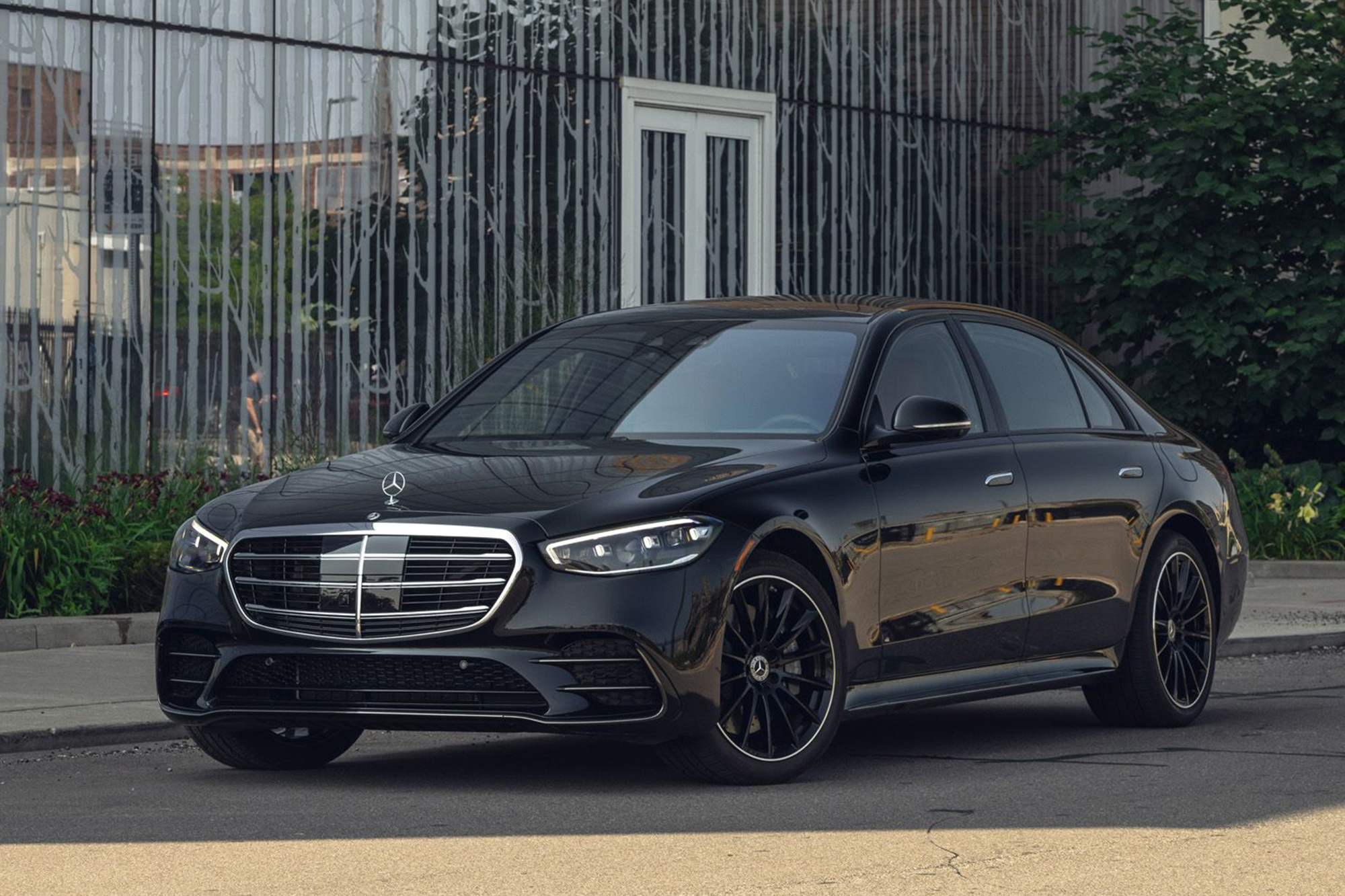

MERCEDES-BENZ S-CLASS

COMMON PROBLEMS: Rear-Axle Steering Drift, HUD Calibration, Valve Block Leak, Engine Mount Fluid Loss, 48V Battery Degradation

Rear-axle steering on the W223 S-Class drifts from calibration after pothole impacts or sensor aging, and the steering feels different at parking speed than it does at highway speed until the system gets recalibrated. MBUX augmented reality head-up display calibration wanders and overlays navigation arrows in the wrong position against the windshield view. Airmatic valve block internal leak allows pressure to bleed between circuits overnight. Engine mount hydraulic fluid loss lets a low-frequency idle vibration into a cabin that’s supposed to feel like a library, and the contrast makes it impossible to ignore. The 48V battery module degrades over charge cycles and reduces the EQ Boost system’s ability to assist the engine during acceleration.
